EVOLVE PG500 PADDLE GATE
– Technical Specification –

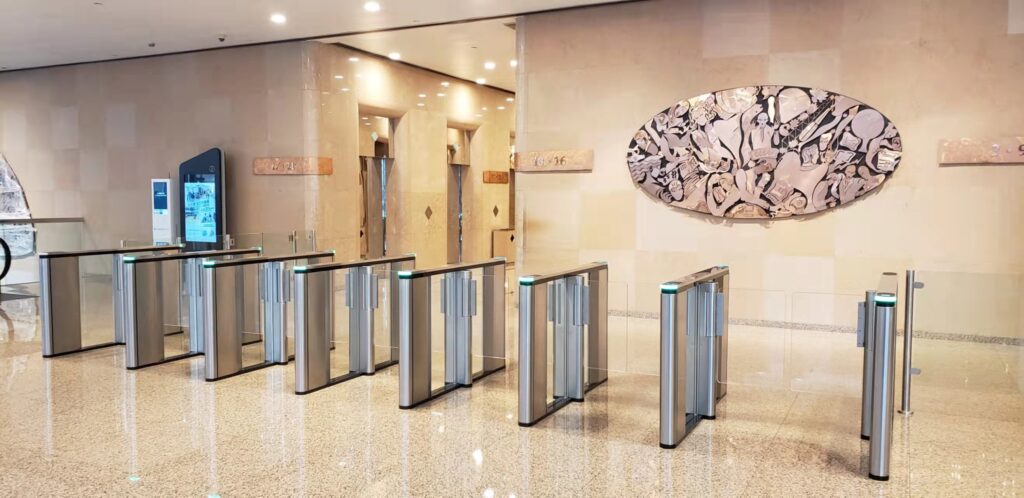

The EVOLVE PG500 Paddle Gate is a controlled pedestrian access solution commonly used as an alternative to traditional turnstiles and speed gates. It is designed to regulate pedestrian entry and exit while maintaining a wider, unobstructed passage suitable for accessible routes, trolley movement, and modern building layouts.
Often referred to as a paddle gate, swing gate, speed lane, speed gate, or pedestrian gate, the PG500 is suitable for environments where controlled access, safety, and smooth pedestrian flow are required without the visual or physical constraints of conventional turnstiles.
The PG500 Paddle Gate is designed for integration with access control systems via dry contact interfaces, enabling controlled operation for entry, exit, or bidirectional flow. Its modular configuration allows deployment across commercial buildings, infrastructure facilities, utilities, and secured environments while maintaining consistent operational performance and user comfort.
Body Material
Base Design : Stainless Steel 304
Cabinet Finishing
Base Design : Brushed Stainless Steel
Arm (Obstacle)
Base Design : 8mm Thick PMMA
Available Obstacle : Single Leaf and Double Leaf
Center Column Finishing
Base Design : Brushed Stainless Steel
Dimension
Cabinet Length : Available in 900mm, 1,100mm, 1,200mm, 1,600mmÂ
Cabinet Width : 100mm
Cabinet Height : 980mm
Detailed Technical Specification (Restricted Access)
Detailed technical information is restricted.
Please contact Enoxson Controls for authorised access.
